ASUS PRIME 750W BRONZE POWER SUPPLY

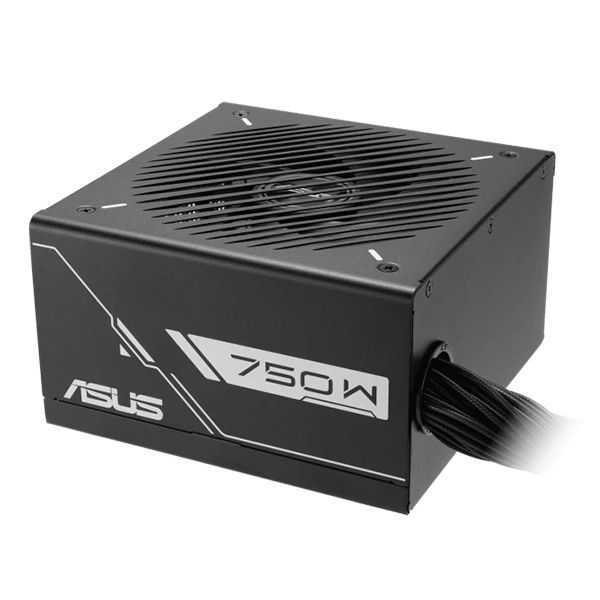

ASUS PRIME 750W BRONZE Power Supply
ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
Dual ball fan bearings that can last up to twice as long as sleeve bearing designs.
An 80 Plus Bronze Certification is the result of low-ESR electrolytic capacitors and other premium components.
Etched cables can be bent easily during installation.

Feature Specification
Model : PRIME-750B-BLACK
Intel Form Factor : ATX12V
PFC Type : Active PFC
Dimensions : 150 x 150 x 86 mm
Efficiency : 80Plus Bronze

MTBF : >120,000 hrs @ 25°C

Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials : ROHS

AC Input Range : 100-240Vac
DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
Maximum Load : 20A 20A 62.5A 0.3A 2.5A
Combined Load : 120W 120W 750W 3.6W 12.5W
Total Output : 750W
Cable Connectors : MB 24/20-pin x 1 , CPU 4+4-pin x 2, PCI-E 8-pin x 3, SATA x 6, PERIPHERAL x 3
