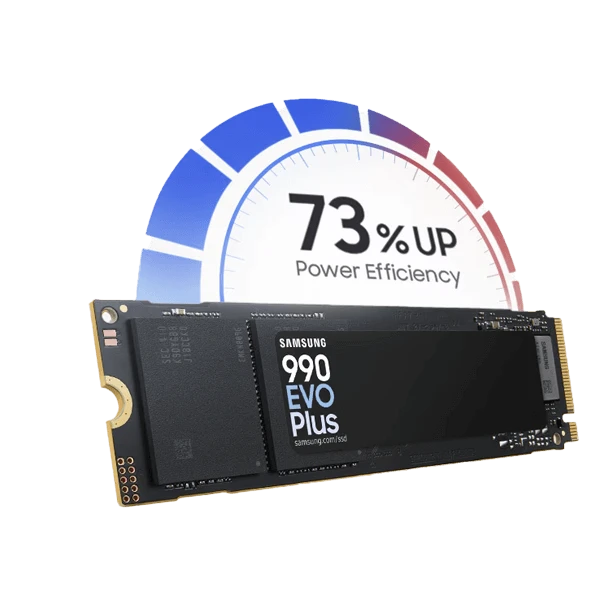

SAMSUNG 990 EVO PLUS Gen 5 1TB NVMe PCIe SSD

SAMSUNG 990 EVO PLUS Gen 5 1TB NVMe PCIe SSD

Feature Specification
Model : SAMSUNG 990 EVO PLUS Gen 5 1TB NVMe PCIe SSD
Capacity : 1TB

FORM FACTOR : M.2 (2280)
INTERFACE : PCIe® Gen 4.0 x4 / 5.0 x2 NVMe™ 2.0
DIMENSION (WxHxD) : 80.15 x 22.15 x 2.38mm
WEIGHT : Max 9.0g Weight
STORAGE MEMORY : Samsung V-NAND TLC
CONTROLLER : Samsung in-house Controller
CACHE MEMORY : HMB(Host Memory Buffer)

Special Feature
TRIM Support : Supported
S.M.A.R.T Support : Supported
GC (GARBAGE COLLECTION) : Auto Garbage Collection Algorithm

ENCRYPTION SUPPORT
AES 256-bit Encryption (Class 0) TCG/Opal : IEEE1667 (Encrypted drive)
WWN SUPPORT :Not supported

DEVICE SLEEP MODE SUPPORT : Yes

Performance
SEQUENTIAL READ 1TB: Up to 7,150 MB/s
SEQUENTIAL WRITE 1TB: Up to 6,300 MB/s
RANDOM READ (4KB, QD32) 1TB: Up to 850,000 IOPS
RANDOM WRITE (4KB, QD32) 1TB: Up to 1,350,000 IOPS

Environment
AVERAGE POWER CONSUMPTION
(System Level)3)
1TB: Average: Read 4.3 W / Write 4.2 W
POWER CONSUMPTION (IDLE)3) : 1TB: Typical 60 mW
POWER CONSUMPTION (DEVICE SLEEP) : 1TB: Typical 5mW
ALLOWABLE VOLTAGE : 3.3 V ± 5 % Allowable voltage
RELIABILITY (MTBF) : 1.5 Million Hours Reliability (MTBF)

OPERATING TEMPERATURE : 0 – 70 ℃ Operating Temperature
Shock : 1,500 G & 0.5 ms (Half sine)
